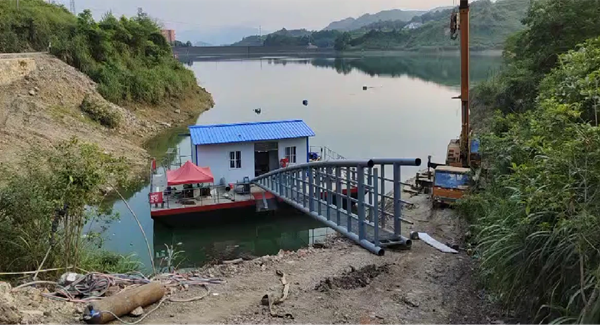

Huili County Urban Rural Water Supply Integration Project

Project Address: Jingwei Reservoir, Shubao Township, Huili County, Liangshan City, Sichuan Province

Project purpose: Water supply for villages and towns

Main technical parameters of the pumping station

Main body dimensions: 18x9x1.3m

Unit configuration: 3 units (2 in use and 1 as backup)

Single-machine flow rate: 360m ³ /h

Head: 65m

Power: 110kW per unit, 380V

Control mode: The shore end is controlled by a control room

Connection method with the shore: Rocker arm connection to DN350 50 meters
