Split Case Pump

What Is a Split Case Pump?

Definition and Basic Explanation

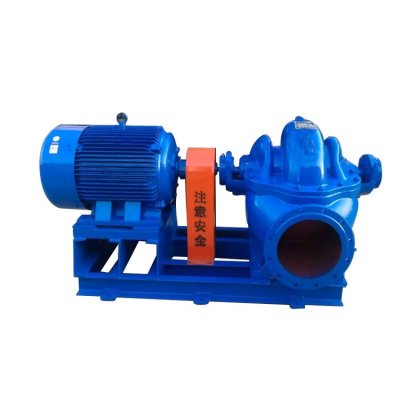

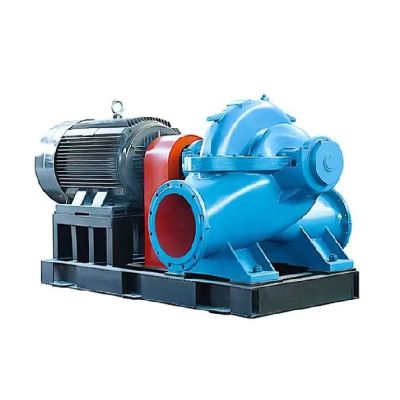

A split case pump is a type of centrifugal pump designed with a unique split casing structure. Imagine a pump that can be opened like a book—this is essentially what a split case pump looks like. Its casing is divided into two halves along a horizontal plane, allowing easy access to the internal components for maintenance and inspection.

Why the Name?

The term “split case” comes from its casing design. Unlike traditional pumps, the casing is split into upper and lower halves, making it easier to service without disturbing the piping connections.
3 results
ViewShowcase

History and Evolution

From Early Designs to Modern Technology

The concept of split case pumps dates back to the early 20th century. Initially, they were simple, heavy-duty pumps used mainly in water systems. Over the decades, technological advancements have improved efficiency, durability, and performance. Today, modern split case pumps incorporate advanced materials, sealing techniques, and automation, making them more reliable than ever.


How Does a Split Case Pump Work?

Working Principle

At its core, a split case pump operates on the centrifugal principle. When the pump’s impeller spins, it creates centrifugal force, pushing fluid outward from the center to the periphery, increasing the fluid’s velocity and pressure. The split casing encloses the impeller, directing the flow efficiently toward the discharge outlet.

Flow Path Simplified

Think of it as a highway system where the fluid enters the eye of the impeller, gains speed, and then is channeled through the volute or diffuser to the outlet. The split casing design ensures smooth flow and easy access for maintenance.


Components of a Split Case Pump

Key Parts and Their Functions

  • Casing Halves: Encapsulate the impeller and split along a horizontal plane for easy access.
  • Impeller: The rotating part that imparts energy to the fluid.
  • Shaft and Bearings: Support the impeller and transmit mechanical power.
  • Seal: Prevents leakage along the shaft.
  • Discharge and Suction Nozzles: Connect the pump to piping systems.
  • Base Plate: Supports the entire assembly and absorbs vibrations.

Types of Split Case Pumps

Based on Design and Application

  1. Horizontal Split Case Pumps: Most common, suitable for high flow rates.
  2. Vertical Split Case Pumps: Used where space constraints exist.
  3. Single-Stage vs. Multi-Stage: Depending on pressure requirements.
  4. Axial and Radial Flow Variants: Based on how fluid flows through the impeller.

Advantages of Using a Split Case Pump

Why Choose a Split Case Pump?

  • Ease of Maintenance: The split casing allows quick access to internal parts, reducing downtime.
  • High Efficiency: Designed for optimal flow, reducing energy consumption.
  • Durability: Built with sturdy materials to withstand harsh conditions.
  • Large Capacity: Capable of handling high flow rates with minimal vibration.
  • Flexible Design: Suitable for various applications and customization.

Applications of Split Case Pumps

Industries and Scenarios

  • Municipal Water Supply: Pumping drinking water across cities.
  • Power Generation: Circulating cooling water in power plants.
  • Industrial Processes: Handling chemicals, slurry, or high-volume liquids.
  • Fire Protection Systems: Supplying water quickly during emergencies.
  • HVAC Systems: Moving large volumes of chilled water.

Installation and Maintenance

Tips for Proper Setup

  • Ensure proper alignment to prevent undue wear.
  • Use appropriate foundations to minimize vibrations.
  • Regularly inspect seals and bearings.
  • Maintain lubrication schedules.
  • Keep an eye on vibration and noise levels.

Maintenance Tips

  • Schedule periodic inspections.
  • Clean strainers and filters.
  • Replace worn-out seals promptly.
  • Monitor flow rates and pressure to catch issues early.

Common Problems and Solutions

Typical Issues

  • Leakage: Often due to seal failure.
  • Vibration: Caused by imbalance or misalignment.
  • Cavitation: Occurs when inlet pressure drops below vapor pressure.
  • Corrosion: Especially in harsh chemical environments.

Troubleshooting Tips

  • Check and replace seals if leaking.
  • Realign the pump if vibration increases.
  • Ensure proper inlet conditions to prevent cavitation.
  • Use corrosion-resistant materials if needed.

How to Choose the Right Split Case Pump

Factors to Consider

  • Flow Rate and Head: Match pump capacity to your system's needs.
  • Fluid Characteristics: Corrosive, abrasive, or viscous fluids require specific materials.
  • Power Supply: Ensure compatibility with available power sources.
  • Space Constraints: Opt for horizontal or vertical designs accordingly.
  • Budget and Cost of Ownership: Balance initial cost with long-term efficiency.

Innovations to Watch

  • Smart Pumps: Integration of IoT for remote monitoring.
  • Energy-Efficient Designs: Focus on reducing operational costs.
  • Advanced Materials: Better wear resistance and corrosion protection.
  • Automation and Control: Improved sensors and control systems for optimal operation.

Comparing Split Case Pumps with Other Pumps

Pros and Cons

Feature Split Case Pump Vertical Pump End-Suction Pump
Ease of Maintenance Very easy Moderate Difficult
Capacity Very high Moderate Low to moderate
Space Requirement Large footprint Compact Compact
Cost Higher Moderate Lower

Summary: Split case pumps excel in high-capacity, easy-maintenance scenarios but may require more space and investment.


Cost Considerations

Price Range and Value

  • Small models: Around $10,000
  • Large, industrial-grade models: $50,000 or more
  • Investment Worth It? Absolutely, considering their durability and efficiency in critical applications.

Conclusion

Split case pumps are the workhorses of fluid transfer in large-scale industries. Their unique design allows for high efficiency, easy maintenance, and long-term durability. Whether you're in water treatment, power generation, or manufacturing, understanding these pumps can help you make smarter decisions for your operations. As technology advances, expect even smarter, more efficient split case pumps to keep industries running smoothly and sustainably.


FAQs

  1. What is the main advantage of a split case pump over traditional pumps?
    The ease of maintenance and high capacity make split case pumps stand out, especially in applications demanding frequent servicing.

  2. Can split case pumps handle corrosive fluids?
    Yes, with the right materials such as stainless steel or specialized coatings, they can handle corrosive fluids effectively.

  3. How often should I inspect my split case pump?
    Regular inspections every 3 to 6 months are recommended, with more frequent checks in harsh environments.

  4. Are split case pumps suitable for high-viscosity fluids?
    They are generally designed for low to moderate viscosity fluids; high-viscosity fluids might require specialized pump types.

  5. What factors influence the lifespan of a split case pump?
    Proper installation, regular maintenance, operating within design parameters, and quality of components all play a role.


There you have it! A comprehensive guide to the mighty split case pump—your go-to solution for high-volume, reliable fluid transfer.
