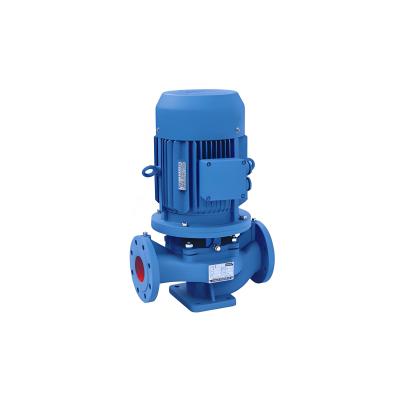

Pipeline Pump

Types of Pipeline Pumps

Centrifugal Pumps

These are the most common type used in pipelines. They operate by spinning an impeller, which throws fluid outward, creating a flow. Ideal for high flow rates and moderate pressures.

Reciprocating Pumps

These pumps use a piston or plunger moving back and forth to generate pressure. They are suitable for high-pressure applications but are more complex and require more maintenance.

Diaphragm Pumps

Using a flexible diaphragm, these pumps are excellent for handling corrosive or hazardous fluids, providing a tight seal and preventing leaks.

Progressing Cavity Pumps

Also known as screw pumps, they are used for viscous fluids or sludges, offering steady flow even with thick, sticky substances.

Peristaltic Pumps

These are specialized for small-scale, precise dosing applications, with fluid contained within flexible tubing.

How Do Pipeline Pumps Work?

Basic Working Principle

Most pipeline pumps, especially centrifugal types, work on the principle of converting mechanical energy into hydraulic energy. When the pump’s impeller spins, it creates a centrifugal force that pushes fluid outward, increasing its velocity and pressure.

Key Components

• Pump Casing: Encases the impeller and directs fluid flow.
• Impeller: The rotating part that imparts energy to the fluid.
• Shaft: Connects the impeller to the motor.
• Seals: Prevent leaks at the shaft entry point.
• Bearings: Support the shaft and reduce wear.
• Motor: Powers the impeller, usually electric.

Flow Mechanics

Fluid enters the pump through the inlet, gets accelerated by the impeller, and exits at a higher pressure through the outlet. The entire process is designed to maintain a steady, reliable flow over long distances.

Applications of Pipeline Pumps

Oil and Gas Industry

Transporting crude oil, refined products, or natural gas liquids over vast distances.

Water Supply Systems

Supplying clean water from reservoirs to cities or irrigation systems.

Chemical Processing

Moving corrosive or hazardous chemicals safely through pipelines.

Mining Operations

Transporting slurry or mineral solutions from extraction sites.

Power Plants

Circulating cooling water or other fluids necessary for operations.

Advantages of Using Pipeline Pumps

• High Efficiency: Designed for continuous operation with minimal energy loss.
• Reliability: Built to withstand harsh conditions and long operational hours.
• Versatility: Suitable for various fluids, pressures, and flow rates.
• Cost-Effective: Reduces operational costs over time due to durability and low maintenance.
• Automation Friendly: Easily integrated with control systems for remote operation.

Disadvantages and Limitations

• Initial Cost: High-quality pipeline pumps can be expensive upfront.
• Maintenance: Requires regular maintenance to prevent leaks and wear.
• Limited to Specific Fluids: Not suitable for all fluids, especially those with solids or high viscosity unless specifically designed.
• Vibration and Noise: Can generate significant vibrations, requiring proper installation.

Key Components of a Pipeline Pump

Pump Casing

Encases the impeller and directs flow; made from durable materials like cast iron or stainless steel.

Impeller

The core component that imparts energy; available in various designs depending on application.

Shaft and Bearings

Support and transmit mechanical power; need regular lubrication and alignment.

Seals

Prevent fluid leaks; mechanical seals are common.

Motor

Provides the power; can be electric, diesel, or turbine-driven.

Factors to Consider When Choosing a Pipeline Pump

• Flow Rate: How much fluid needs to be moved per unit time.
• Head (Pressure): The height or pressure the pump needs to overcome.
• Fluid Type: Viscosity, corrosiveness, temperature.
• Material Compatibility: Pump materials must resist corrosion or wear.
• Power Source: Electric, diesel, or other.
• Space and Installation Constraints: Physical size and layout.

Installation and Maintenance Tips

• Proper Alignment: Ensures longevity and reduces vibration.
• Routine Checks: Monitor for leaks, unusual noise, or vibration.
• Lubrication: Keep bearings and seals well-lubricated.
• Cleaning: Remove debris or buildup that could impair performance.
• Scheduled Overhauls: Regularly inspect and replace worn parts.

Efficiency and Energy Savings

Optimizing pump operation can significantly cut energy costs. Use variable frequency drives (VFDs) to control motor speed based on demand, and select pumps that match your system's specific needs to avoid unnecessary energy consumption.

Emerging Trends in Pipeline Pump Technology

• Smart Pumps: Equipped with sensors and IoT technology for real-time monitoring.
• Eco-Friendly Designs: Using materials and designs that reduce environmental impact.
• Automation and Control Systems: Enhancing efficiency and reducing manual oversight.
• Energy Recovery Systems: Capturing and reusing energy within the system.

Common Problems and How to Solve Them

• Leakages: Check seals and gaskets; replace if damaged.
• Cavitation: Caused by low inlet pressure; ensure proper inlet conditions.
• Vibration and Noise: Balance impeller, check alignment, or replace worn bearings.
• Overheating: Improve cooling, reduce load, or check for blockages.
• Reduced Flow: Inspect for clogs, wear, or impeller damage.

Case Study: Successful Pipeline Pump Implementation

A mid-sized chemical plant faced frequent downtime due to pump failures. After switching to a modern, automation-enabled centrifugal pipeline pump with corrosion-resistant materials, they experienced a 30% increase in efficiency and reduced maintenance costs. The upgrade ensured continuous operation, minimized leaks, and improved safety standards.

Conclusion

Pipeline pumps are essential components in modern industry, enabling the safe, efficient, and reliable transportation of fluids over long distances. Whether you're in oil and gas, water supply, or chemical processing, understanding the different types, working principles, and maintenance practices can help you select the right pump for your needs. Investing in quality and staying updated on emerging technologies will ensure your operations run smoothly and sustainably.

FAQs

Q1: What is the most common type of pipeline pump?
A1: Centrifugal pumps are the most widely used due to their efficiency and suitability for high flow rates.

Q2: Can pipeline pumps handle corrosive fluids?
A2: Yes, with proper material selection like stainless steel or specialized coatings, pipeline pumps can handle corrosive substances safely.

Q3: How often should pipeline pumps be maintained?
A3: Regular checks should be performed monthly, with comprehensive maintenance every 6 to 12 months, depending on usage conditions.

Q4: Are pipeline pumps suitable for viscous fluids?
A4: Some types, like progressing cavity or positive displacement pumps, are better suited for viscous fluids.

Q5: What are the signs of pump failure?
A5: Unusual noises, vibrations, leaks, decreased flow rate, or overheating are common indicators.
