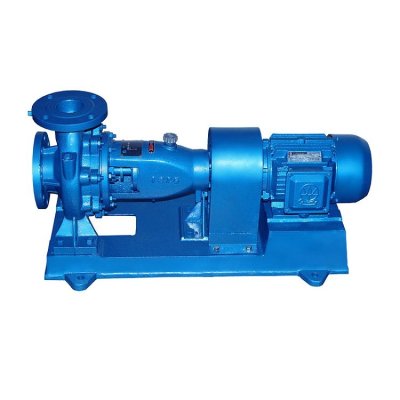

Chemical Pump

Advantages of Chemical Pumps

1. Strong chemical compatibility:It can be made of corrosion-resistant materials such as stainless steel, PTFE (Teflon), Hastelloy, etc., and is suitable for various corrosive fluids.

2. High efficiency: automatic conveying, reducing manual operations, saving time and labor.

3. Good safety: It is equipped with safety devices such as leak detection and pressure relief valve to reduce the risk of exposure to hazardous chemicals.

4. Accurate delivery: It can achieve precise control of flow rate/dosage (such as diaphragm pumps, peristaltic pumps), suitable for fine chemical processes.

5. Strong durability: designed to adapt to harsh chemical environments, components are corrosion-resistant and wear-resistant, with a long service life.

Main Components of a Chemical Pump

1. Impeller: The core energy transmission part, which transmits kinetic energy to the fluid by rotation. The material is selected according to the characteristics of the medium, such as fluoroplastics, 316L stainless steel.

2. Pump casing: Encloses the impeller, guides fluid flow, and protects internal components

3. Shaft: Connects the impeller and the motor to transmit power. The surface is usually treated with anti-corrosion treatment like chrome plating or made of duplex steel.

4. Sealing:Mechanical seals, which are widely used and consist of dynamic and static rings, or magnetic seals can be adopted to prevent medium leakage.

5. Bearing: It supports the rotation of the pump shaft and reduces friction and wear. Rolling bearings or sliding bearings

6. Motor: Provides power source, needs to be explosion-proof for flammable and explosive media or ordinary type.

Application Scenarios

1. Chemical Processing: Reactive chemicals, strong acids and alkalis, solvents, etc. in pipelines for the oil refining, pharmaceutical, and petrochemical industries.

2. Water Treatment: Pipeline purifiers, disinfectants (such as chlorine solutions), and chemicals for seawater desalination.

3. Food and Beverage: Precise and hygienic handling of thickeners, detergents, and acids.

4. Mining: Pipeline slurries, flotation reagents, and solutions.

5. Agriculture: Pipeline fertilizer solutions, pesticides (where corrosion protection is required), and irrigation chemicals.

Installation Tips

1. Anti-corrosion treatment: The installation environment needs to be ventilated to avoid the accumulation of corrosive gases. anti-corrosion flanges are used to connect the pump body and pipeline.

2. Sealing protection: Ensure that the seals are tightly installed. Leakage collection devices should be added when transporting high-risk chemicals.

3. Grounding protection: The motor must be reliably grounded to prevent dangers caused by static electricity, especially when transporting flammable chemicals.

4. Location selection: Keep away from fire and heat sources to facilitate operation and maintenance. for peristaltic pumps, ensure that the hose is installed without twisting.

Maintenance Tips

1. Regular inspection (once a month): Check whether the seal is leaking, motor temperature, and whether the fluid delivery is stable.

2. Parts replacement: Mechanical seals should be replaced every 6–12 months, while magnetic seals require replacement every 2–3 years. Peristaltic pump hoses also need regular replacement to avoid aging and cracking.

3. Cleaning and maintenance: Clean the inside of the pump body after each change of fluid type. remove debris from the inlet filter.

4. Lubrication maintenance: The bearings of gear pumps and cam pumps need to be added with chemical-resistant lubricating oil every 3 months.

Common Troubles and Remedies

Selection Points

1. Parameter matching: determine the flow rate and head according to the working conditions to ensure that the rated values cover the requirements.

2. Fluid adaptation: select the pump body/component material according to the chemical composition of the fluid ( e.g. Hastelloy for strong acid, PTFE for organic solvent).

3.Fluid characteristics: gear pumps/screw pumps are suitable for high-viscosity fluids. cam pumps/peristaltic pumps are suitable for fluids containing solid particles. peristaltic pumps are suitable for sensitive/sterile fluids. and chemical centrifugal pumps are suitable for low-corrosion and high-flow fluids.

4.Safety features: when transporting high-risk chemicals, choose models with leak detection and pressure relief valves.

5.Environmental conditions: select high-temperature resistant motors and seals for high-temperature working conditions, and rainproof and corrosion-resistant models for outdoor installations.

Innovative Direction in Chemical Pump Technology

1. Intelligence and Digitalization: Chemical pumps are equipped with more sensors and automatic control systems, enabling real-time operating status monitoring, fault warnings, remote maintenance, and performance optimization.

2. Multifunctional Integration: Chemical pumps integrate sewage disposal, pressure boosting, flow control, and other functions. Through modular design, they are flexibly expandable and adaptable to diverse industrial needs.

FAQs

Q1: What materials are commonly used in chemical pumps?
A1: Materials like stainless steel, PTFE (Teflon), Hastelloy, and rubber elastomers are common due to their corrosion resistance and durability.

Q2: How often should chemical pumps be maintained?
A2: Regular inspections should be performed monthly, with comprehensive maintenance every 6-12 months, depending on usage and chemical exposure.

Q3: Can chemical pumps handle solids or slurry?
A3: Yes, certain pump types like lobe or peristaltic pumps are designed to handle solids and slurries effectively.

Q4: Are chemical pumps energy-intensive?
A4: Not necessarily. Modern pumps are designed for energy efficiency, but operational costs depend on size, type, and application.

Q5: What safety precautions should be taken when operating chemical pumps?
A5: Always wear appropriate PPE, ensure proper sealing and leak detection, and follow manufacturer guidelines to prevent accidents.

Conclusion

Chemical pumps are vital components in various industries, ensuring safe, efficient, and precise handling of challenging fluids. Whether you’re managing corrosive acids or viscous oils, selecting the right pump can make all the difference. As technology advances, these pumps will become smarter, more durable, and more efficient — powering the industries of tomorrow.
