Multistage Pump

How Does a Multistage Pump Work?

Basic Working Principle

At its core, a multistage pump operates on the centrifugal principle. Fluid enters the pump's eye (center of the impeller), gains velocity as it spins, and is pushed outward, converting kinetic energy into pressure energy.

In a multistage setup, the fluid passes through multiple impellers sequentially. Each impeller adds more energy, progressively increasing the pressure. Between impellers, diffusers or return channels help convert velocity into pressure, optimizing efficiency.

Think of it like climbing a ladder—each rung (impeller) adds a bit more height (pressure). The result? A high-pressure output from a relatively compact device.

Components of a Multistage Pump

Key Parts and Their Functions

• Impellers: The rotating blades that impart kinetic energy to the fluid.
• Diffusers: Stationary parts that convert velocity into pressure.
• Casing: Encloses the impellers and directs flow.
• Shaft: Connects impellers to the motor.
• Seal: Prevents leaks along the shaft.
• Bearings: Support the shaft's rotation.

Each component works in harmony to ensure the pump operates smoothly and efficiently.

Types of Multistage Pumps

Centrifugal Multistage Pumps

Most common, used for water supply, irrigation, and industrial processes.

Vertical Multistage Pumps

Designed for space-saving applications, often used in boiler feedwater or high-rise buildings.

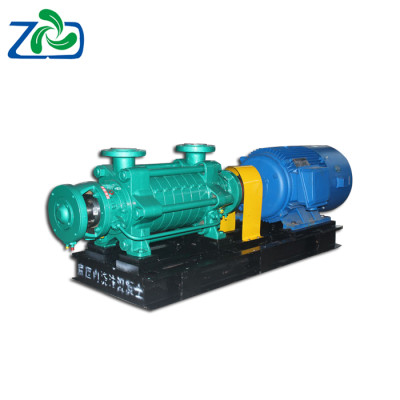

Horizontal Multistage Pumps

Ideal for high flow rates, used in water treatment plants.

Other Variants

• Multistage Regenerative Pumps
• Multistage Axial Pumps

The choice depends on your specific pressure, flow, and space requirements.

Advantages of Multistage Pumps

• High Pressure Capability: Perfect for applications requiring high head.
• Efficiency: Multiple stages mean energy is used effectively.
• Compact Design: Achieve high pressure without large size.
• Versatility: Suitable for various liquids and industries.
• Reliability: Well-maintained pumps can operate for years.

Wouldn't you agree? These benefits make multistage pumps a go-to choice in demanding applications.

Disadvantages of Multistage Pumps

• Complexity: More parts mean more potential points of failure.
• Higher Initial Cost: Investment can be significant.
• Maintenance Needs: Requires regular inspection and servicing.
• Sensitivity to Operating Conditions: Cavitation and wear can reduce lifespan.

Knowing these limitations helps in making informed decisions.

Applications of Multistage Pumps

Industries Using Multistage Pumps

• Water Supply & Distribution: High-rise buildings, municipal water systems.
• Oil & Gas: Pumping crude oil and refined products.
• Power Plants: Boiler feedwater systems.
• Chemical Processing: Handling aggressive or corrosive fluids.
• Agriculture: Irrigation systems.

Basically, if high pressure and flow are needed, multistage pumps are likely involved.

How to Choose the Right Multistage Pump?

Factors to Consider

• Flow Rate & Head: Match the pump's capacity to your needs.
• Fluid Properties: Corrosiveness, temperature, and viscosity.
• Space Constraints: Vertical or horizontal installation.
• Energy Efficiency: Long-term cost savings.
• Material Compatibility: Pump materials should resist wear and corrosion.

It's like buying a car—you pick the one that best fits your lifestyle and budget.

Maintenance and Troubleshooting

Tips for Longevity

• Regularly check seals and bearings.
• Keep the pump clean and free of debris.
• Monitor vibrations and temperature.
• Schedule periodic inspections.

Common Problems

• Cavitation: Caused by low inlet pressure.
• Leakages: Seal failures.
• Wear & Tear: Impeller erosion or corrosion.

Prevention is better than cure—think of it as giving your pump a health check-up.

Comparing Multistage Pumps with Single-Stage Pumps

In essence, multistage pumps shine when high pressure is needed, while single-stage pumps are simpler and cheaper for modest tasks.

Innovations in Multistage Pump Technology

Recent advancements include:

• Smart Monitoring: IoT-based sensors for predictive maintenance.
• Energy-efficient Designs: Improved impeller and diffuser geometries.
• Corrosion-resistant Materials: For aggressive fluids.
• Variable Speed Drives: For better control and efficiency.

The future is all about making these pumps smarter, greener, and more reliable.

Cost Analysis

While multistage pumps might seem expensive upfront, their efficiency and durability often lead to lower operational costs. Think of it as investing in a good pair of shoes—initially costly but long-lasting and comfortable.

Future Trends

Expect to see:

• More automation and smart features.
• Use of eco-friendly materials.
• Enhanced energy-saving capabilities.
• Integration with renewable energy sources.

The evolution of multistage pumps is set to make fluid transfer more sustainable and efficient.

Conclusion

In summary, multistage pumps are vital components in many high-pressure applications. Their ability to deliver high flow rates efficiently in a compact form makes them indispensable across industries. While they come with some complexities, proper selection, maintenance, and understanding can unlock their full potential. If you're looking to move fluids over long distances or to significant heights, a multistage pump might just be your best bet.

FAQs

Q1: What is the main advantage of a multistage pump over a single-stage pump?
Multistage pumps can generate much higher pressure and are more efficient for high-head applications, making them suitable for complex and demanding tasks.

Q2: Can multistage pumps handle corrosive fluids?
Yes, with appropriate materials like stainless steel or special alloys, they can handle corrosive substances effectively.

Q3: How often should a multistage pump be maintained?
Regular inspections should be done quarterly, with comprehensive servicing annually, depending on usage and operating conditions.

Q4: Are multistage pumps energy-efficient?
Generally, yes. Their design allows for better energy utilization, especially when operating at high pressures.

Q5: What is cavitation, and how does it affect multistage pumps?
Cavitation occurs when vapor bubbles form in the fluid due to low pressure, causing damage to impellers and reducing efficiency. Proper inlet pressure and maintenance prevent cavitation.

There you have it! Whether you're seeking to understand the basics or looking to invest in a multistage pump, I hope this guide has shed some light on this powerful piece of engineering. Remember, the right pump can make all the difference in your fluid transfer projects!
