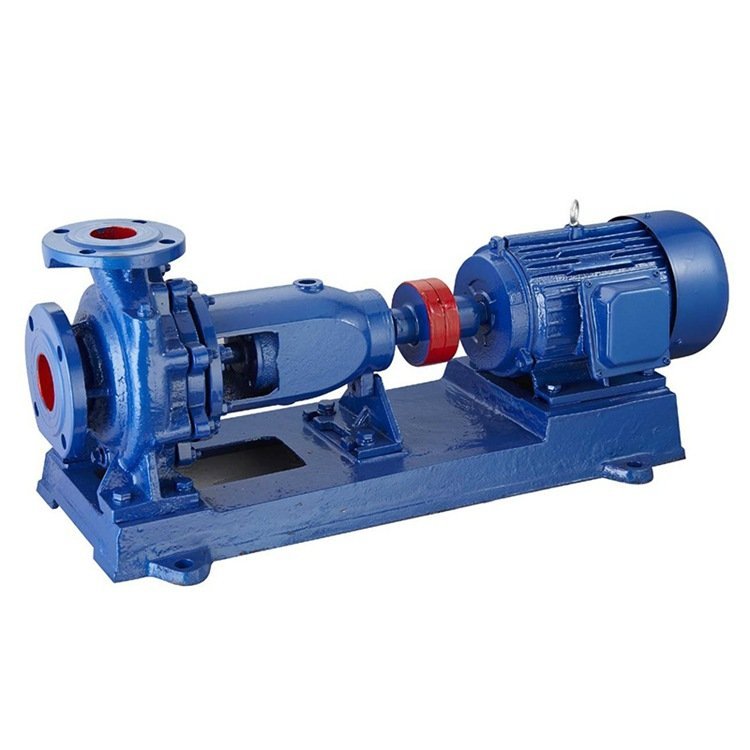

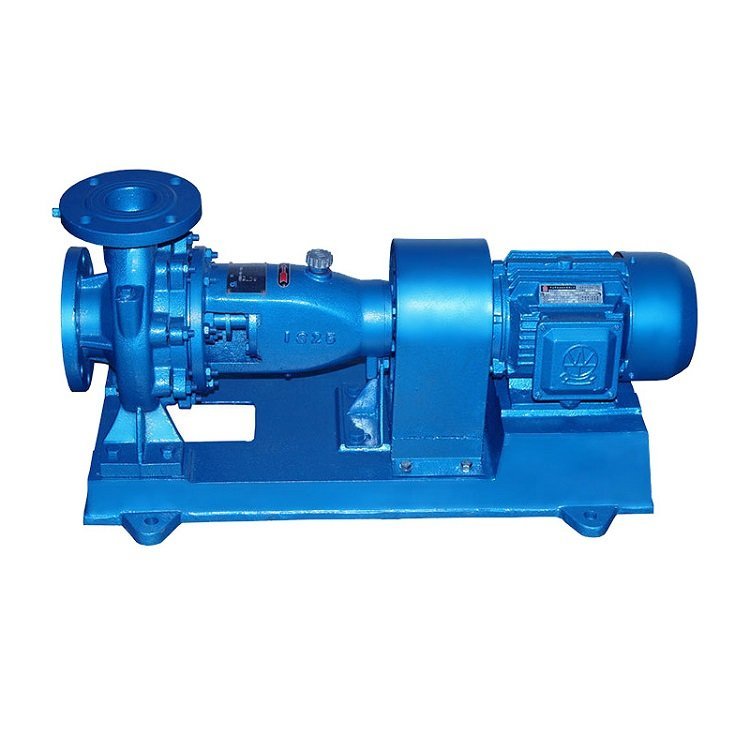

Horizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost Effective
Horizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost EffectiveHorizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost EffectiveHorizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost EffectiveHorizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost EffectiveHorizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost Effective

Horizontal Stage Centrifugal Water Pump | High Efficiency | Stainless steel chemical pump | Cost Effective

CategoriesChemical Pump
BrandZHONGDA PUMPS
ModelZE
Power0.55-110KW
Capacity6.3-400m3/h
Max Head5-125m
Colourcustomizable
FOB portGuangzhou, Qingdao, Shenzhen, Shanghai
Terms of PaymentL/C, T/T
Update TimeAug 16,2025
Detail Information
  • Product Introduction
  • Product Features
  • Scope of Application
  • Structural Drawings
  • Performance Parameters
  • Data Download

Product Introduction

The ZE type chemical pump is a single-stage single-suction centrifugal pump, specially designed for transporting corrosive media. This pump is made of stainless steel or other corrosion-resistant materials, featuring excellent corrosion resistance. It is widely used in industries such as chemical engineering, petroleum, pharmaceuticals, food, and metallurgy for transporting corrosive liquids like acids, alkalis, and salts. Its temperature range is from -20℃ to 120℃.

Model Description:

Take ZE50-32-160 as an example:
- ZE: Chemical pump type
- 50: Pump inlet diameter (mm)
- 32: Pump outlet diameter (mm)
- 160: Impeller nominal diameter (mm)

Product Features:

  •  Strong corrosion resistance: Made of stainless steel or other corrosion-resistant materials, suitable for various corrosive media.
  • Compact structure: Reasonable design, small footprint, easy installation.
  • High efficiency and energy saving: Advanced hydraulic model, high efficiency, low energy consumption.
  • Smooth operation: The impeller is precisely balanced, with low vibration and low noise.
  • Easy maintenance: The pump shaft and motor are on the same axis, easy to disassemble and assemble, and low maintenance cost.
  • Reliable sealing: Equipped with mechanical seals or packing seals to ensure no leakage and reliable operation.

Scope of Application:

- Chemical industry: Used for transporting corrosive liquids such as acids, alkalis, and salts.
- Petroleum industry: Used for transporting crude oil, refined oil products, and chemical raw materials.
- Pharmaceutical industry: Used for transporting pharmaceutical solutions, solvents, etc.
- Food industry: Used for transporting beverages, dairy products, etc.
- Metallurgical industry: Used for transporting pickling solutions, electrolytes, etc.

Structural Drawings:

Multi-stage pump structure diagram

Performance Parameters:

NO.
Model
Flow
Head
Speed
Efficiency
(NPSH)r
Motor Power
Inlet
Diameter
ZE
m3/h
m
rpm
%
m
kW
mm
1
32-25-160
6
33
2900
22.45
2.0
3.0
2.4
2
50-32-160
12.5
32
2900
38
2.0
4
2.83
3
50-32-200
6
60
2900
39
3.0
7.5
2.5
4
65-50-205
25
80
2900
46
2.0
15
11.8
5
80-65-125
50
20
2900
52
2.3
7.5
5.2
6
80-65-250
50
80
2900
50
2.5
22
21.77
7
100-80-160
100
32
2900
61
4.3
15
14.32
8
100-80-200
100
50
2900
72
3.9
22
18.9
9
125-100-200
200
50
2900
70
5
45
38.9
10
125-100-315
120
32
1450
58
3.0
22
18
11
150-125-250
200
20
1450
70
3.0
18.5
15.6
12
150-125-315
200
32
1450
68
3.0
30
25.6
13
200-150-250
400
20
1450
60
5
37
36.3
14
200-150-315
350
100
2900
48
5
200
198.5
...
...
...
...
...
...
...
...
...

*For more models, please download our catalogue or contact us.

Data Download:

Download Multi-stage pumps PDF brochure

ZE-type Multistage Pump

Download Product PDF Brochure
